N-type female solder pin, crimp connector for RG213 stranded core, solid PE dielectric coaxial cable, DC-11 GHz, 50 Ohms – tri-metal plated

N-type female solder pin, crimp connector for RG213 stranded core, solid PE dielectric coaxial cable, DC-11 GHz, 50 Ohms - tri-metal plated

Product code: NF-7939

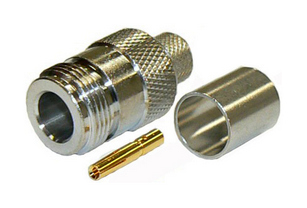

The NF-7939 is a N-type female solder pin, crimp connector for RG213 stranded core, solid PE dielectric coaxial cable (SKU: 7800-100/7800-300). The NF-7939 N-female connector is tri-metal plated for improved connectivity over a nickel plated model, better suited for low PIM specific requirements.

download brochure

Specifications

Frequency

DC to maximum 11 GHz

Impedance

50 Ohms - nominal

Maximum Power

500 Watts - 1kW peak

Polarisation

Straight - solder pin, crimp sleeve

Construction

Tri-metal plated body and crimp sleeve, gold plated centre conductor and PTFE insulator

Connector

N-type female / N-female

Weight - kg

0.030
