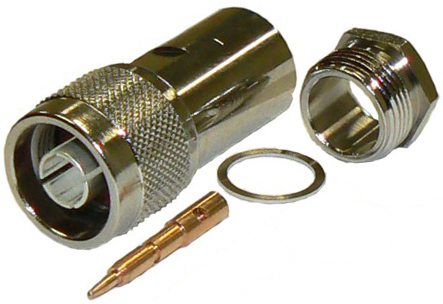

N-type male solder pin, clamp-style connector for RU400 solid core coaxial cable and RG8 coaxial cable, DC-11 GHz, 50 Ohms – nickel plated

N-type male solder pin, clamp-style connector for RU400/RU400-UF and RG8 coaxial cables, DC-11 GHz, 50 Ohms - nickel plated

Product code: NM-7930

The NM-7930 is a N-type male solder pin, clamp style coaxial connector for RU400 low loss, solid core, braid shielded coaxial cable (SKU: 7890-100/7890-300), RU400-UF low loss stranded core coaxial cable or RG8 coaxial cable.

download brochure

Specifications

Frequency

DC to maximum 11 GHz

Impedance

50 Ohms - nominal

Maximum Power

500 Watts maximum - 1kW peak

Polarisation

Straight - clamp-style

Construction

Nickel plated body and clamp nut, gold plated centre pin and PTFE insulator

Connector

N-type male / N-male

Weight - kg

0.096

Buy Online

enquire now
