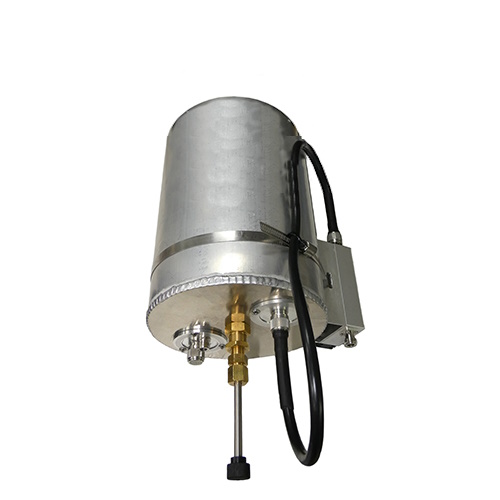

UHF single cavity band-pass filter, 400-520 MHz, specify 300 kHz 2 x N-type females, 100W – 150mm x 200mm

UHF single cavity band-pass filter, 400-520 MHz, specify 300 kHz 2 x N-type females, 100W - 150mm x 200mm

Product code: ZUBPF-400520

The ZUBF-18883 UHF single band-pass cavity filter is our fully-australian manufactured UHF cavity filter for utilisation within the UHF frequency range 400-520 MHz. The ZUBF-18883 UHF cavity filter will greatly reduce unwanted signal transmission from your UHF system. The ZUBF-18883 compact design can be mounted into a transmission hut, rack or can be mobile mounted inside your vehicle using appropriate mounting hardware.

download brochure

Specifications

Frequency

400-520 MHz - UHF

Bandwidth

Specify any 300 kHz when ordering

Tuning

Factory at 1.2:1 VSWR, can be field re-tuned if required using network analyser or sitemaster

Impedance

50 Ohms - nominal

Maximum Power

100 Watts

Polarisation

Can be 19" rack mounted vertical or horizontal or any flat surface

Construction

Anodised aluminium outer, INVAR internals and PTFE insulators

Connector

Input: N-type female, Output: N-type female

Dimensions

Height: 160mm, Diameter: 150mm

Weight - kg

1.55
