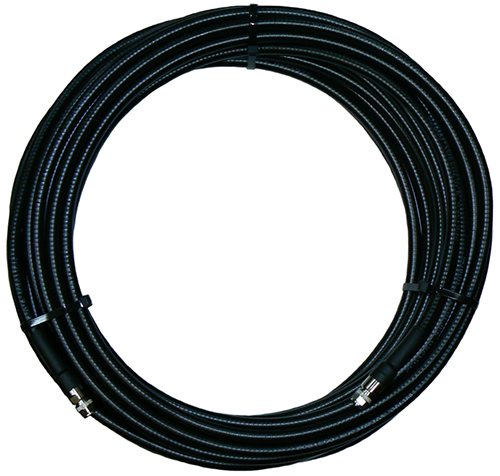

Cable assembly 6m 1/2″ flexible corrugated shielded, foam PE dielectric coaxial cable, ZCG1250, N-type male connectors fitted both ends

Cable assembly 6m 1/2" flexible corrugated shielded, foam PE dielectric coaxial cable, ZCG1250, N-type male connectors fitted both ends

Product code: CA106-S-N-NM-NM-E11

The CA106-S-N-NM-NM-E11 is a 6 metre 1/2" flexible coaxial cable assembly terminated with a N-type male clamp-style connector on each end. The CA106-S-N-NM-NM-E11 is a 1/2" corrugrated solid copper shielded, foam PE dielectric, solid core coaxial cable assembly known as ZCG1250. UV stabilised heatshrink is applied to the rear of the connector onto the cable, additional waterproofing of amalgamation butyl rubber tape and PVC tape should be applied to all terminations.

download brochure

Specifications

Frequency

DC to maximum 2.4 GHz

Tuning

Factory

Impedance

50 Ohms - nominal

Maximum Power

500 Watts

Construction

1/2" flexible, corurgated shielded, foam PE dielectric coaxial cable, UV stabilised glueshrink and tri-metal plated N-male connectors

Connector

N-type male / N-male connector fitted both ends

Dimensions

Length: 6 metres

enquire now
