FM Radio 2 dipole horizontal panel, 304 stainless steel, 87.5-108MHz, specify 10MHz, 2-5kW, 7.5dBd – 2.5m

FM Radio 2 dipole horizontal panel, 87.5-108 MHz, specify 10 MHz, 2kW or 5kW, 7/16" DINF or 7/8" EIA, 7.5 dBd - 2.5m

Product code: FM-ZHPD

The FM-ZHPD is a horizontally polarised FM broadcast panel that can cover a customer specified 10MHz inside the FM Radio broadcast band 87.5-108MHz. This allows for improved coverage and/or multiple broadcast frequencies and antenna sharing. If you require a vertically polarised version please see the FM-ZVPD. ZCG recommend mounting the FM-ZHPD as high on your tower or structure as possible using appropriate mounting hardware to suit your requirements.

download brochure

Specifications

Frequency

87.5-108 MHz - FM Radio

Bandwidth

Specify any 10 MHz within frequency range when ordering

Gain

7.5 dBi - per panel

Tuning

Factory at 1.2:1 VSWR across specified 10 MHz bandwidth

Impedance

50 Ohms - nominal

H Plane beamwidth

65° E Plane: 58°

Maximum Power

7/16" DIN female: 2kW, 7/8" EIA: 5kW

Polarisation

Horizontal only

DC grounded

Yes

Construction

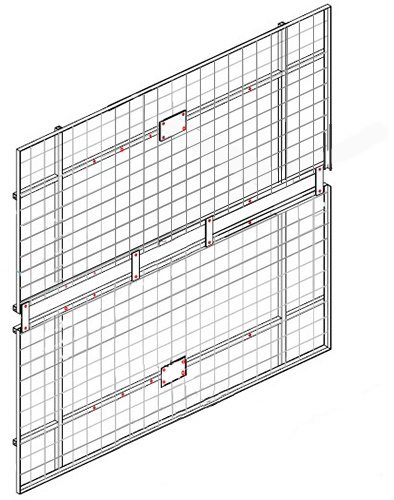

Galvanised open mesh steel reflector screen, 2 x welded 304 stainless steel horizontal dipoles and tri-metal plated 7/16" DIN female connectors

Connector

2 x tri-metal plated 7/16" DIN at rear of antennas, can be requested with 7/8" EIA flanged - cost will be incurred.

Dimensions

Panel: 2.2m x 2.2m, Panel & Dipole Depth: 1.0m

Weight - kg

76.0

Wind load at 160kph

130.5kg, 1.279kN
