FM radio 3dB hybrid coupler, 87.5-108MHz, 1.05:1 VSWR, 7/8″ EIA and 1-5/8″ EIA, 2 x 5kW – 500mm

FM radio 3dB hybrid coupler, 87.5-108MHz, 1.05:1 VSWR, 7/8" EIA and 1-5/8" EIA, 2 x 5kW - 500mm

Product code: FRC-5

The FRC-5 FM radio 3dB hybrid coupler combines two input signals into one output port, whilst maintaining better than 30dB of isolation between them. The FRC-5 is suitable for creating dual decked combiners or adding two power amplifiers.

download brochure

Specifications

Frequency

FM radio broadcast 87.5-108MHz

Bandwidth

Full frequency range

Tuning

Factory at 1.05:1 VSWR

Impedance

50 Ohms

Maximum Power

2 x 5 Kilowatts input

Construction

Alodyne treated 120 finish aluminium components and PTFE

Connector

Inputs 2 x 7/8" EIA, Output: 1-5/8" EIA

Dimensions

Length: 500mm, Width: 270mm, Height: 80mm

Weight - kg

3.0

enquire now

Have a question about a particular product on offer? Submit your enquiry below:

more from this category

3 -way Tx hybrid combiner, 87-108MHz, freq. spacing 150KHz, 6.5dB insertion loss, 100W, 50 Ohm

TXCOM-88-108-3

FM radio 3dB hybrid coupler, 87.5-108MHz, 1.05:1 VSWR, 7/8" EIA and 1-5/8" EIA, 2 x 5kW - 500mm

FRC-5-H

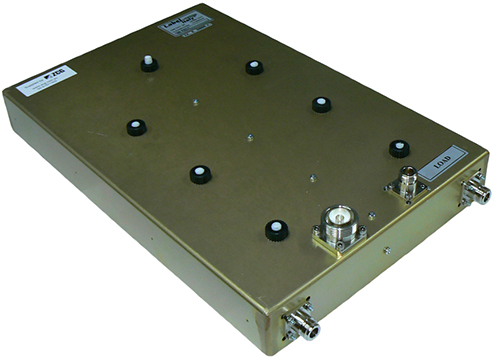

FM radio 3dB hybrid coupler, 87.5-108MHz, 1.05:1 VSWR, N-type female and 7/16" DIN female, 2 x 800W - 430mm
