FM radio directional coupler, 87.5-108MHz, 1.02:1 VSWR, 3 x N-type female, Max 1kW – 100mm

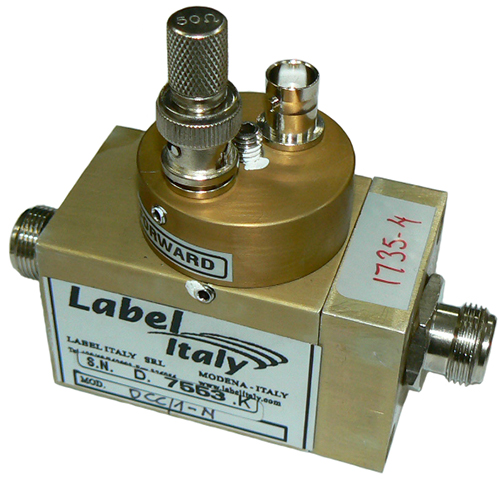

FM radio directional coupler, 87.5-108 MHz, 1.02:1 VSWR, 2 x N-type female, Max 1kW - 100mm

Product code: DCC-1-N2

The DCC-1-N2 directional FM Radio coupler is designed for low to medium power FM radio applications. ZCG's range of directional couplers are available in a wide range of input/output terminations.

download brochure

Specifications

Frequency

87.5-108 MHz - FM Radio

Bandwidth

Full frequency range stated - 20.5 MHz

Tuning

Factory at 1.02:1 VSWR

Impedance

50 Ohms

Maximum Power

Maximum power: 1 Kilowatt, >35dB isolation

Construction

Alodyne treated aluminium 120 finish, silver plated copper and PTFE insulators

Connector

Terminations: 2 x N-type females

Dimensions

Length: 100mm, Width: 40mm, Height: 60mm

Weight - kg

0.300

enquire now

Have a question about a particular product on offer? Submit your enquiry below:

more from this category

FM radio high power quadruple directional coupler, 87.5-108 MHz, 1.02:1 VSWR, 2 x 1-5/8" EIA, 15kW - 180mm

DCC-10-S

FM radio Double directional coupler, 87.5-108MHz, 1.02:1 VSWR, 2 x 7/8" EIA, Max 5kW - 170mm

DCC-5-F2

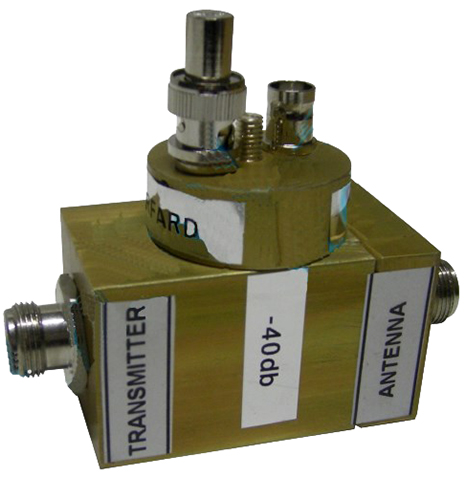

FM radio directional coupler, 87.5-108 MHz, 1.02:1 VSWR, 2 x N-type female, Max 1kW - 100mm, Single Directional coupler
