Low P.I.M. N-type female clamp connector jack for 7/8″ flexible foam cable – ZCG7850 – tri-metal plated

Low P.I.M. N-type female clamp connector jack for 7/8″ flexible foam cable – ZCG7850 – tri-metal plated

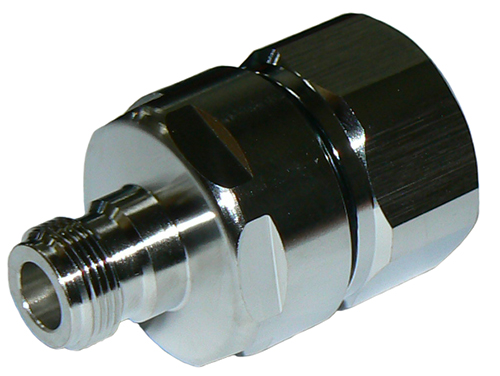

Low P.I.M. N-type female clamp connector for 7/8" flexible corrugated shielded, foam dielectric cable, ZCG7850, DC-8 GHz, 50 Ohms - tri-metal plated

Product code: NF7850

Our NF7850 7/8" connector is a low passive intermodulation (P.I.M.) N-type female clamp-style connector to suit 7/8" corrugated coppper shielded, foam dielectric coaxial cable (ZCG7850). The NF7850 N-female for 7/8" cable, is suitable for broadcast systems or high powered communication systems. The NF7850 N-female connector for 7/8" coaxial cable is rated for a Maximum 500 mating cycles and is IP68 rated with connector to coaxial cable water sealing using 2 layers of self-amalgamating butyl rubber tape and a top layer of uPVC tape.

download brochure

Download Installation Guide

Specifications

Frequency

DC to maximum 8 GHz

Impedance

50 Ohms

Maximum Power

500 Watts - 1kW peak

Polarisation

Straight - clamp-style

Construction

Tri-metal plated body, rear securing nut and internal flange, gold plated centre conductor and PTFE insulator

Connector

N-type female / N-female

Weight - kg

0.174
