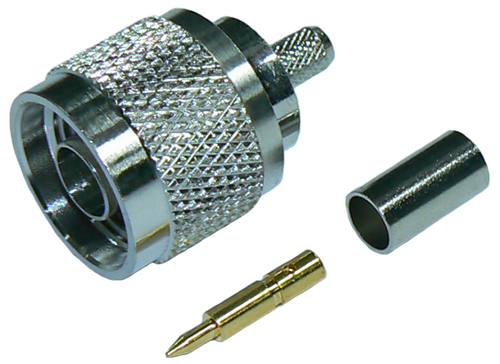

Low P.I.M. N-type male crimp connector for RG142 teflon dielectric, DC-11 GHz, 50 Ohms – tri-metal plated

Low P.I.M. N-type male crimp connector for RG142 teflon dielectric, DC-11 GHz, 50 Ohms - tri-metal plated

Product code: NM-8200

The NM-8200 is a low PIM N-type male coaxial connector for RG142B/U solid core, teflon dielectric coaxial cable (SKU: 7823-2-300). The NM-8200 is IP67 rated when waterproofing of self-amalgamating butyl rubber tape and uPVC tape is applied once installed.

download brochure

Specifications

Frequency

DC to maximum 11 GHz

Tuning

<1.2:1 at DC-3 GHz, <1.35:1 at 3-6 GHz

Impedance

50 Ohms - nominal

Maximum Power

#ERROR!

Polarisation

Straight - crimp-type

Construction

Tri-metal plated body and crimp sleeve, gold plated centre pin and PTFE insulator

Connector

N-type male / N-male

Dimensions

Length: 29mm, Thread: 5/8" x 24 -UNEF-2B

Weight - kg

0.03
