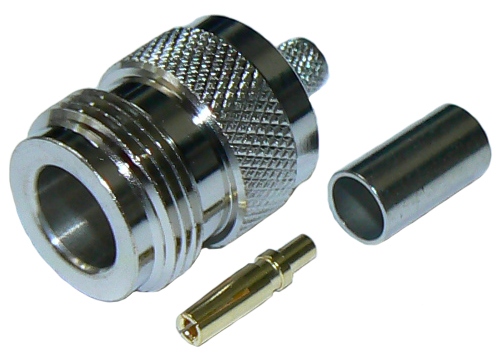

N-type female crimp connector for RG58 coaxial cables, DC-11 GHz, 50 Ohms – tri-metal plated

N-type female crimp connector for RG58 coaxial cables, DC-11 GHz, 50 Ohms - tri-metal plated

Product code: NF-7938

The NF-7938 is a N-type female crimp connector suitable for RG58 low loss, solid core, foam PE dielectric coaxial cable (SKU: 7839-100/7839-300) and RG58A/U stranded core, solid PE dielectric coaxial cable (SKU: 7803-100/7803-300).

download brochure

Specifications

Frequency

DC to maximum 11 GHz

Tuning

1.25:1 VSWR at DC-3 GHz

Impedance

50 Ohms - nominal

Maximum Power

500 Watts - 1kW peak

Polarisation

Straight - crimp-style

Construction

Tri-metal plated body and crimp sleeve, gold plated centre pin and PTFE insulator

Connector

N-type female / N-female - according to IEC 60169-16

Dimensions

Length: 30mm, Diameter: 16.6mm, Mount thread: 5/8"-24 UNEF-2A

Weight - kg

0.024
