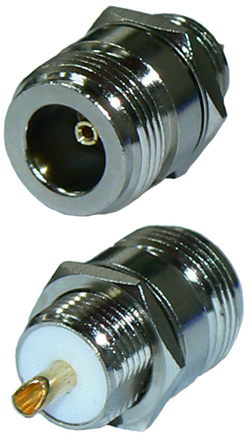

N-type female SHM receptacle connector, 1/2″-26 brass thread, incl. nut and lock tooth washer, DC-11 GHz, 50 Ohms – tri metal plated

N-type female SHM receptacle connector, 1/2"-26 brass thread, incl. nut and lock tooth washer, DC-11 GHz, 50 Ohms - tri metal plated

Product code: NF-7915

The NF-7915 is a N-type female bulkhead connector or SHM receptacle connector with a 1/2"-26 brass mount thread. The NF-7915 is suitable for wall mounting for through-wall connectivity. ZCG recommend water/dust ingression protection for all termination utilising amalgamation butyl rubber tape and PVC tape be applied once connector installed.

download brochure

Specifications

Related Parts

Frequency

DC to maximum 11 GHz

Impedance

50 Ohms - nominal

Maximum Power

500 Watts

Construction

Tri-metal plated body, nut, lock tooth washer, gold plated centre conductor and PTFE insulator

Connector

N-type female / N-female

Dimensions

Length: 29mm, Diameter: 22mm, Rear thread: 10mm

Weight - kg

0.049
