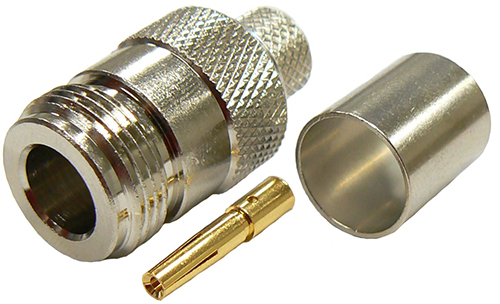

N-type female, solder pin, crimp connector for RU400 low loss coaxial cable and RG8 coaxial cable, DC-11 GHz, 50 Ohms – tri-metal plated

N-type female, solder pin, crimp connector for RU400 low loss coaxial cable and RG8 coaxial cable, DC-11 GHz, 50 Ohms - tri-metal plated

Product code: NF-8227

The NF-8227 is a N-type female solder pin, crimp connector for our RU400 low loss, solid copper conductor, foam PE dielectric coaxial cable (SKU: 7890-100/7890-300), RG8 coaxial cable or any equivalent 400 series coaxial cable available on the market.

download brochure

Specifications

Frequency

DC to maximum 11 GHz

Impedance

50 Ohms - nominal

Maximum Power

500 Watts - maximum, 1kW peak

Polarisation

Straight - solder pin, crimp sleeve

Construction

Tri-metal plated body and crimp sleeve, gold plated centre pin and PTFE insulator

Connector

N-type female / N-female / N-F

Weight - kg

0.030

Buy Online

enquire now
