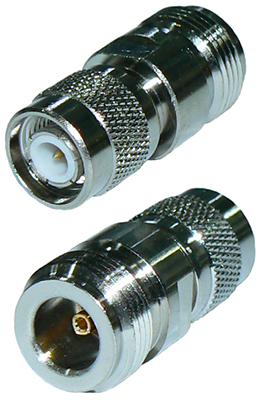

N-type female to TNC male straight inter-series adaptor, DC-11 GHz, 50 Ohms – nickel plated

N-type female to TNC male straight inter-series adaptor, DC-11 GHz, 50 Ohms - nickel plated

Product code: ADP-7974

The ADP-7974 is a N-type female connector to TNC male connector straight inter-series coaxial adaptor. The ADP-7974 N-female to TNC male adaptor can be utilised to convert a N-type male or TNC female terminated coaxial cable or directly fitted onto your equipment.

download brochure

Specifications

Frequency

DC to maximum 11 GHz

Impedance

50 Ohms - nominal

Polarisation

Straight - inter-series

Construction

Nickel plated body, gold plated centre pin and PTFE insulator

Connector

N-type female and TNC male

Weight - kg

0.062
