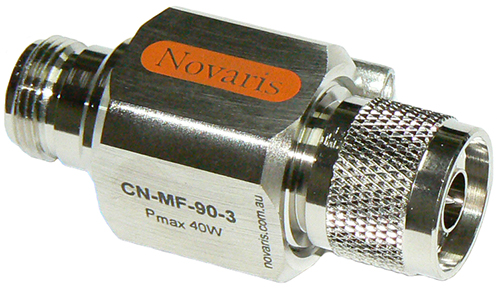

Novaris coaxial surge protector, gas tube type, N-type male to N-type female bulkhead, 0-40 Watt P/R, up to 3GHz

Novaris coaxial surge protector, gas tube type, N-type male to N-type female bulkhead, 0-40 Watt P/R, up to 3GHz

Product code: CN-MF-90-3

The CB-MF-90-3 coaxial power surge protector is rated up to 3GHz with a 90 Volt sparkover internal gas tube. In the event of a power surge or lightning strike on your tower, mast or structure, inspect your surge protector and replace if the gas tube has activated.

download brochure

Specifications

Frequency

Up to 3GHz

Impedance

50 Ohms

Maximum Power

0-40 Watts P/R

Construction

Aluminium body and tri-metal plated terminations

Connector

N-type male and N-type female bulkhead
