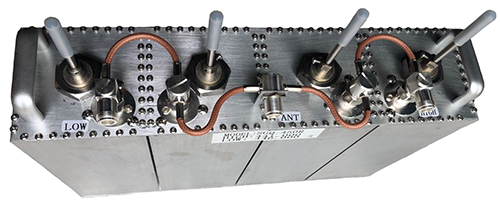

UHF 4-pole duplexer, 380-520MHz, insertion loss 1.2 dB, 50 Ohm, N-type female, 350W –

UHF 4-pole duplexer, 400-520MHz, insertion loss 1dB, 50 Ohm, N-type female, 350W, 2RU 19" 410mm x 360mm x 110mm

Product code: ZSGQ-450-R

The ZSGQ-450-R 350W UHF duplexer is configured with 4 cavities, suitable for UHF, Terrestrial trunked radio, Land Mobile Radio (LMR) duplexed system or Governement Radio network installations. The ZSGQ-450-R 4-pole UHF duplexer has isolation performance of greater than 75dB and insertion loss is less than 1.2dB.

download brochure

Specifications

Related Parts

Frequency

UHF 380-520MHz - TETRA/LMR/GRN/CBRS compatible

Bandwidth

Specify 200kHz, with 5-15MHz frequency spacing

Impedance

50 Ohms - nominal

Maximum Power

350 Watts

Isolation

>75dB ; Insertion loss: 1.2-1.5 dB

Construction

Machined aluminium outer case and brackets, coaxial cable joiners and nickel plated terminations

Connector

3 x N-type female

Dimensions

410mm x 360mm x 110mm

Weight - kg

6.5

enquire now

Have a question about a particular product on offer? Submit your enquiry below:

more from this category

Compact UHF cavity duplexer, 380-520 MHz, specify Rx & Tx with 3-10 MHz spacing, 100W, N-type female, 80-85dB isolation - 1RU

ZSGQ-450-K

Compact UHF cavity bandpass duplexer, 380-520 MHz, 10MHz Tx/Rx separation, 80dB isolation, <2dB insertion loss, 3 x SMA-F, 50W - 177mm x 98mm x 85mm

ZSGQ-450-10A

Bandpass-bandreject cavity duplexer, 400-520 MHz, 70dB isolation @ 0.75MHz split 2.5dB insertion loss, 50 Ohm, N-female connectors, 250W - 55 x 50 x 30, specify frequency

ZSGQ-460

Dualband VHF & UHF duplexer/diplexer, VHF high band 118-137 MHz & UHF 400-470 MHz, 100W, N-type female - 115mm x 95mm x 25mm

ZDX118470NF
