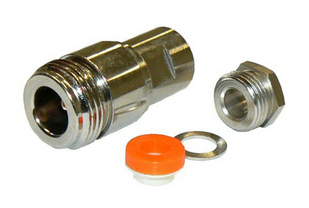

N-type female, solder pin, clamp-style connector for RG58 coaxial cables, DC-11 GHz, 50 Ohms – nickel plated

N-type female, solder pin, clamp-style connector for RG58 coaxial cables, DC-11 GHz, 50 Ohms - nickel plated

Product code: NF-7918

The NF-7918 is a N-type female female solder pin, clamp-style connector for RG58A/U stranded core, solid dielectric coaxial cable (SKU: 7803-100/7803-300) or RG58 low loss, solid core, foam PE dielectric coaxial cable (SKU: 7839-100/7839-300).

download brochure

Specifications

Frequency

DC to maximum 11 GHz

Tuning

1.25:1 VSWR @ DC-2500 MHz

Impedance

50 Ohms - nominal

Maximum Power

500 Watts - 1kW peak

Polarisation

Straight - solder pin, clamp-style

Construction

Nickel plated outer and coupling nut, gold plated centre pin, PTFE insulator and silicone gasket

Connector

N-type female / N-female

Weight - kg

0.036
