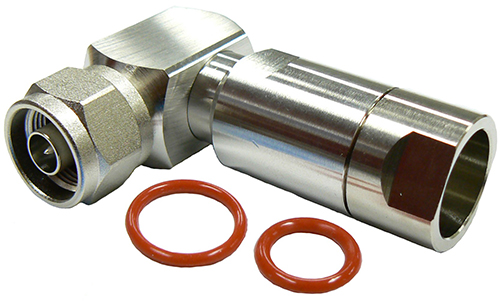

N-type male right-angle low P.I.M. clamp connector for 1/2″ flexible cable, DC-11GHz, 50 Ohms – tri-metal plated

N-type male right-angle low P.I.M. clamp connector for 1/2" flexible cable, DC-11GHz, 50 Ohms - tri-metal plated

Product code: NMRA1250

The NMRA1250 is a right-angle N-type male connector for 1/2" flexible, corrugated copper shielded, foam PE dielectric, solid conductor cable, ZCG1250. The NMRA1250 right-angle N-male connector has a intermodulation performance figure of <-155dBc@ 2 x 43dBm (20W), suitable for low PIM installations such as cellular systems.

download brochure

Specifications

Frequency

DC to maximum 11 GHz

Impedance

50 Ohms - nominal

Maximum Power

500 Watts, 1kW - peak

Construction

Tri-metal plated body & securing nut, silver plated centre pin, PTFE insulator & neoprene O-rings

Connector

Right-angle N-type male / Right-angle N-male

Dimensions

Length: 48mm, Diameter: 19mm

Weight - kg

0.048
